  • SUYU is engaged in manufacturing and supplying a wide range of rail sleeper screw. Designed with high precision and processed under advanced technologies, these rail sleeper screws are manufactured using high grade raw materials, satisfying all the quality standards. With reliability, robustness and effective performance, these products can be used in railway engineering.

    Rail sleeper screw spikes are used to fasten sole plates and ribbed base plates to wooden sleepers. In rail construction with the concrete sleepers, the rail sleeper screw is used in combination with a plastic dowel pressed in the concrete sleeper, indirect or direct fastenings of rails on concrete and wooden sleepers. Characteristically, the sleeper screw thread may only be produced in a hotforming operation. The different shapes of the head correspond to the pass form of the respective spanner used for fastening and loosening of the rail sleeper screws.

    The screw spike costs more to manufacture than the dog spike or dog nail, but has the advantage of greater fixing power; approximately twice that of a dog spike, and can be used in combination with spring washers.

    SUYU can supply a range of rail sleeper screw spikes manufactured to international standards according to BS, ASTM and DIN, among others. SUYU has extensive experience in the rail industry and a high level of expertise in this specialized field. SUYU can manufacture any quantity, big or small, and offers a range of finishes including hot dipped galvanized, black, sherardized or self color for the budget conscious.

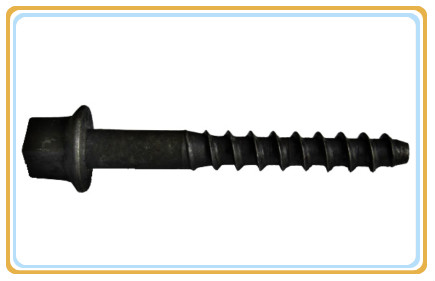

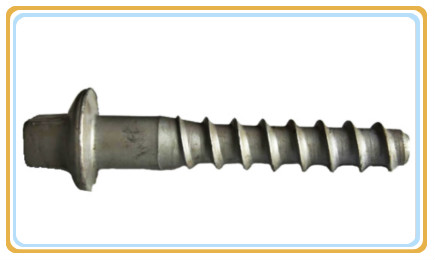

    1. Ss series rail sleeper screw is according to the standard UIC864-1
    Grade:
    4.6, 5.6, 8.8
    Material:
    Q235, 35#, 45#
    Surface Treatment:
    Plain (oiled), black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement







    Type

    Dimension (mm)

    Weight (Kg)

    Ss5-150

    M24×150

    0.545

    Ss8-140

    M24×140

    0.528

    Ss8-150

    M24×150

    0.548

    Ss8-160

    M24×160

    0.568

    Ss23-160

    M24×160

    0.645

    Ss25-165

    M24×165

    0.625

    Ss35-161

    M24×160

    0.657



    2. We produce the rail sleeper screw spikes for the USA with the standard ASTMA66-87, cold bending 90 degree without cracks. Standard strength 65000PSI or high strength 100000psi is available.
    Diameter:
    3/4", 7/8", 15/16"
    Length:
    5-1/2", 6", 7", 8", 10"
    Grade:
    4.6, 5.6, 8.8
    Material:
    Q235, 35#, 45#
    Surface Treatment:
    Plain (oiled), Black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement



    3. Rail sleeper screw spikes with big disk are mostly used in South America and Africa
    A taper of 1mm in the core and thread diameters towards to the point of the screw over the portion shown parallel is allowed, provided the tolerance on the diameter at the upper end is not exceeded. The material for the rail sleeper screw is complying with British
    standard N 15-1961.
    Diameter:
    22mm, 23mm
    Length:
    115mm, 133mm, 178mm
    Grade:
    4.6, 5.6
    Material:
    Q235, 35#
    Surface Treatment:
    Plain (oiled), Black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement

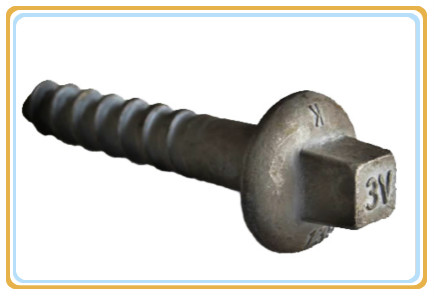

    4. Sleeper screw 3V meets with NF F50-006, Grade 4.6 and 5.6. The mechanical properties are in accordance with NF F 50006, tension strength 700MPA (min), elongation 12% (min), and cold bending 30 degree without crack.
    Grade:
    4.6, 5.6
    Material:
    Q235, 35#
    Surface Treatment:
    Plain (oiled), Black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement



    Type

    Dimension(mm)

    Weight (Kg)

    V20-135

    M20×135

    0.438

    V23-115

    M23×115

    0.48

    V23-135

    M23×135

    0.55

    V23-155

    M23×155

    0.62

    V23-215

    M23×215

    0.78

    V26-115

    M26×115

    0.55



    5. Screw spike for wooden sleeper (high tension screw spike)
    Size:
    15/16×6-1/2

    Surface Treatment:
    Plain (waxed), Black painting
    MOQ:
    5000PCS
    Packing:
    38PCS in 50LB plastic keg

    High Tension Screw Spike







    Tensile Strength

    Yield Strength

    Elongation

    Reduction of Area

    Hardness

    120,000psi(min)

    92,000psi(min)

    14%(min)

    35%(min)

    HRC22-HRC32

    Full size carbon steel screw spikes shall stand being bent cold 45degree around a pin three times, the spike's diameter without crack on the outside of the bent portion.
    Material: 45#, heat treatment

    6. Coach screw is used for the mining industry in South Africa
    Diameter: 18mm
    Length:
    65mm and 75mm
    Material:
    Q195 and Q235
    Surface Treatment: Zinc

    Grade:
    4.6
    MOQ:
    50,000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement



    7. DHS35 rail sleeper screw spike, supports the use of the SKL14 rail fastening system
    Diameter: 24mm

    Length:
    158mm and 161mm
    Grade:
    4.6, 5.6, 8.8
    Material:
    Q235, 35#, 45#
    Surface Treatment:
    Plain (oiled), Black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement



    8. Rail sleeper screw spike with round thread, according to the standard NF-F 50014
    Grade:
    4.6, 5.6, 8.8
    Material:
    Q235, 35#, 45#,
    Surface Treatment:
    Plain (oiled), Black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement

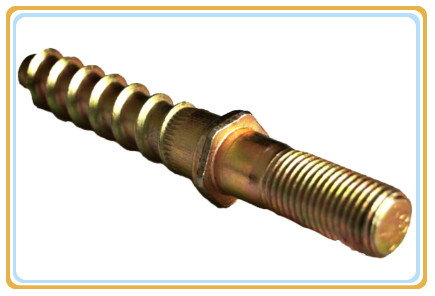

    说明: Rail Sleeper Screw9. Rail sleeper screw spike with two ends, fixes the rail together with the Nabla clip system. This spike is very popular in Africa. We use special material TD16 to produce the sleeper screw to meet with the bending test, b, ending 30 degree and straightening it, without crack.
    Size:
    23×174
    Grade:
    5.6
    Material:
    TD16
    Surface Treatment:
    Plain (oiled), Black painting, Zinc, HDG
    MOQ:
    5000PCS
    Packing:
    25Kg plastic bags and wooden pallets or according to clients' requirement



    10. Timber drive spikes can reduce installation and maintenance costs. The spikes are used for timber construction highway crossing planks and panels, bridge and trestle guard rails, motor car set-off, docks, etc. The washer head is single forged and the excellent holding power of threads provides tight installation. The spikes are easily installed, driven with a maul or pneumatic spike driver. They cannot be overdriven and are easily removed for reuse with a hand or power tool. The drive spikes are available for a wide variety of installations and maintenance of way, and meet with the standard ASTMA66-87, cold bending 90 degree without crack.
    Main Size: 5/8×10 and 7/8×7

    Grade:
    5.6
    Material:
    35#
    Surface Treatment:
    Zinc or according to clients' requirement
    MOQ:
    5000PCS
    Packing:
    200LB kegs and wooden pallets or according to clients' requirement

    Tensile Strength

    Yield Strength

    Elongation 2"

    414Mpa

    207Mpa

    >18%

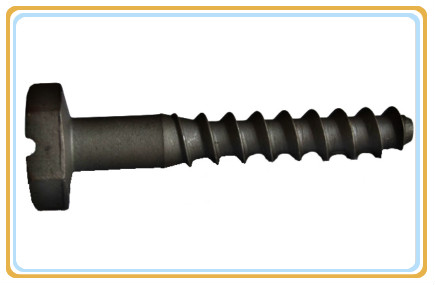

    11. Screw spike with slotting head, as per UIC864-1
    Size: 24×131 and 24×150

    Grade:
    4.6
    Material:
    Q235
    Surface Treatment:
    Plain, Black painting or according to clients' requirement
    MOQ:
    5000PCS
    Packing:
    Plastic bags and wooden pallets



  • Brand

    SUYU

    Name

    Screw Spike

    Type

    Ss5.-150

    V20-135

    Ss8-140

    V23-115

    Ss8-150

    V23-135

    Ss8-160

    V23-155

    Ss23-160

    V23-215

    Ss25.-165

    V26-115

    Ss35.-161



     Or the type by customers’ drawings

    Grade

    4.6

    5.6

    8.8

    10.9

    Material

    Q235

    35#

    45#

    40Cr

    Mechanical properties

    Tensile strength: 400Mpa

    Tensile strength:500Mpa

    Tensile strength:800Mpa

    Tensile strength:1000Mpa

    Yield strength:240Mpa

    Yield strength:300Mpa

    Yield strength:640Mpa

    Yield strength:900Mpa

    Elongation:22%

    Elongation:20%

    Elongation:12%

    Elongation:9%

    Cold bending: 90 degree without crack

    Cold bending: 90 degree without crack

    Cold bending: 90 degree without crack

    Cold bending: 90 degree without crack

    Surface

    plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

    Standard refers

    ISO898-1, UIC864-1, and NF F500-50

  • 25KG double-layer woven bag with fumigation-free wooden pallet.
